SlimBox Wall Mounting Server Cabinet

urun urun urun urun

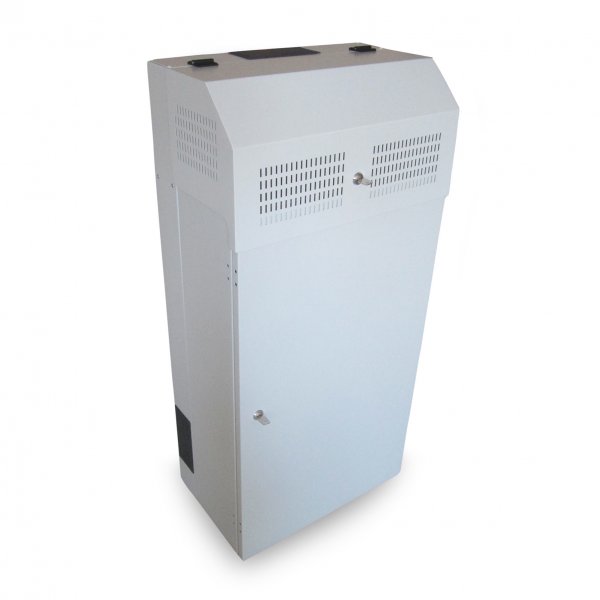

SLIMBox Series Wall Mounted 19” SERVER Cabinets W=500mm



- Securely locking hinged body for two sections; top and front doors.

- 740 mm usable equipment (server or UPS) depth (vertical)

- Upper bay mounts patch panels and pivots.

- Lower bay mounts server or UPS devices.

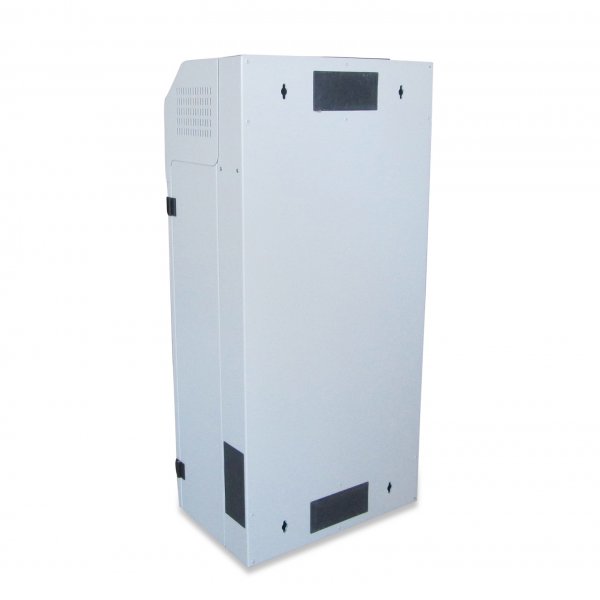

- Punched knockouts in the backpan with plastic cover for cable entry:

o Top and bottom – 145 x 70 mm

o Right and left – 145 x 70 mm

- One bottom located fan mounting position with guard (fan not included.)

- Metal solid welded construction. Sturdy design.

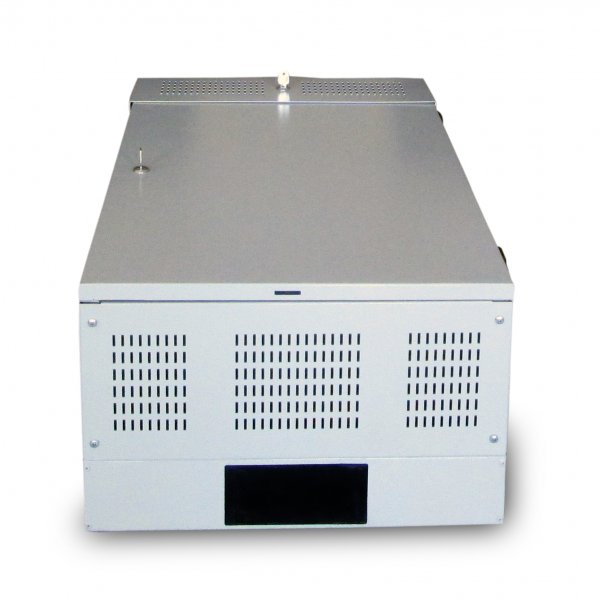

- Vented front and side for cooling.

- Abundant cable tie points included for cable management.

- Available in a durable texture electrostatic powder paint

o 70-90 mm thickness

o 500 hours of Salt Spray test resistance

o Adhesion capability EN ISO 2409: Class 0 to 1

o Colors: RAL 7035 light grey or RAL 9005 black

o Max. Loading capacity: 100 kg
