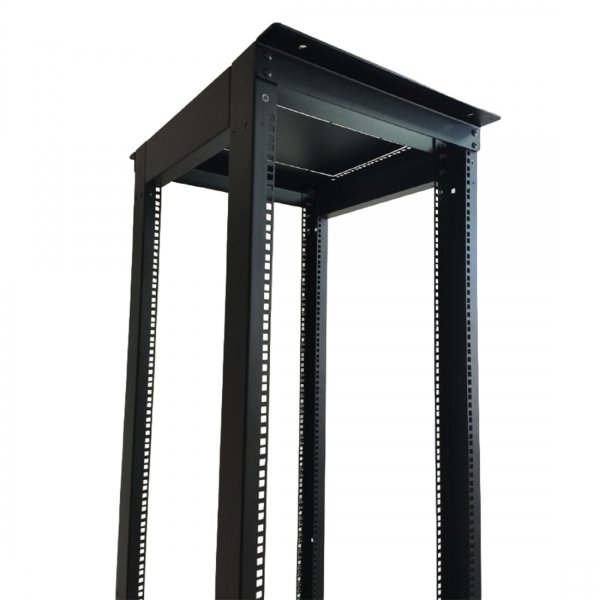

Open Frame Rack Cabinet

urun urun urun urun urun

Technical features:

  • Main Profile is manufactured from 2.0 mm steel using automatic bending technology.
  • The connection L supports at the bottom and top are made of 4.0 mm thick steel.
  • The wheels or leveling feet are attached to pre-drilled holes with a diameter of 12 mm.
  • Open Frame System Cabinets, easy assembly and demountable supply options are available.
  • The design of the frames and L supports provides a high load capacity of 600 kg.
  • There are two frame models available: d:80 mm and d:160 mm.
  • The single frame model can be created from both d:80 mm and d:160 mm frames. The double-frame segment is created from d:80 mm frames, when front and rear view dual cable management modules are installed, d:160 mm frames are required.
  • D:670 mm, D:870 mm, D:1070 mm double frames can also be configured with depth frame connection apparatus.
  • Color options: RAL 9005 Black or RAL 7035 Light Grey.
